YG-1
EM886015

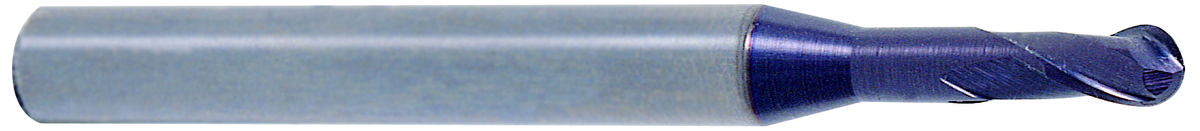

1.5 x 4 x E8 x N1.45 2FL H-30 REG X-POWER METRIC BALL FOR RIP PROCESSSING
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1.5 |
| Overall Length (Inch) | 1-71/92 |
| Length Of Cut (Inch) | 1/11 |
| Overall Length (Metric) | 45 |
| Cutting Direction | Right |
| Shank Size (Metric) | 4 |
| Type | Carbide, 2 Flute Ball Nose for Rib Processing |
| Material | Carbide |
| Length Of Cut (Metric) | 2.3 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/17 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.06 |
| Neck Diameter (Metric) | 1.45 |
| Short Description | 2FL H-30 REG X-POWER METRIC BALL FOR RIP PROCESSSING |
| Shank Diameter (Fractional) | 3/19 |
| Shank Diameter (Decimal) | 0.16 |
| Application | P |
| Length of Cut | 2.30 mm |
| Neck Diameter (Fraction) | 2/35 |
| Series | EM886 |
| Diameter | 1.50 mm |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.03 |
| Ball Nose Radius (Metric) | 0.75 |
| Ball Nose Radius (Fractional) | 1/34 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.32 |
| Length Below Shank (Metric) | 8 |
| Length Below Shank (Fractional) | 23/73 |
| Neck Diameter (Fractional) | 2/35 |
| Base Item Number | 2FL H-30 REG X-POWER METRIC BALL FOR RIP PROCESSSI |
| Neck Diameter (Inch) | 0.06 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0215 |
| Shank Diameter (Inch) | 0.1575 |
| Size | 1.5 x 4 x E8 x N1.45 |
| Shank Style | Plain |
