YG-1
G85024

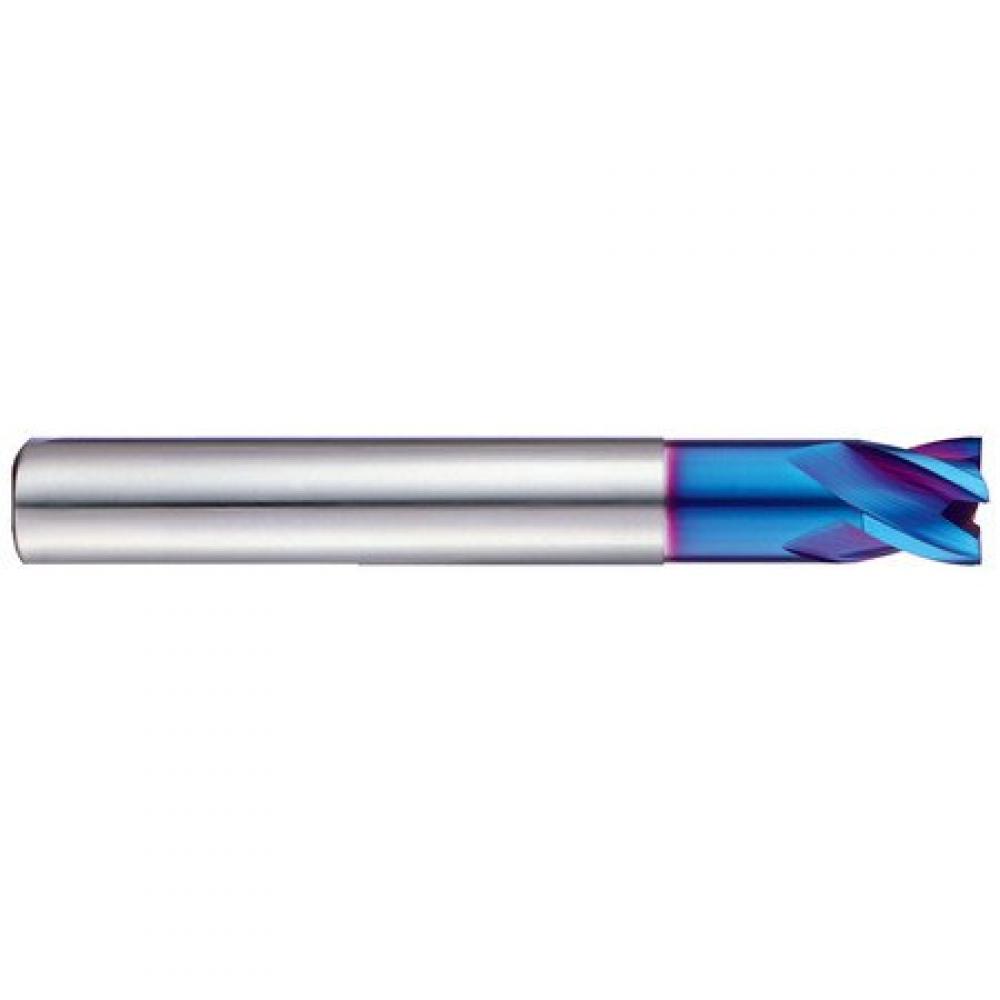

3/8 x 3/8 x 1/2(1LBS) x 3, R.008 4FL STUB H-30 RADIUS EXTENDED NECK X-5070
Specifications
| Length Of Cut (Inch) | 0.5000 |
|---|---|
| Material | Carbide |
| Type | Carbide, 4 Flute Stub Length Corner Radius With Extended Neck |
| Length Of Cut (Metric) | 12.70 |
| Coating/Finish | Blue Coating |
| Corner Radius (Metric) | 0.20 |
| Number Of Flutes | 4 |
| Neck Diameter | 0.3630 |
| Cutting Direction | Right |
| Neck Diameter (Metric) | 9.22 |
| Short Description | 4FL STUB H-30 RADIUS EXTENDED NECK X-5070 |
| Shank Type | Plain |
| Series | G850 |
| Diameter (Metric) | 9.53 |
| Shank Style | Plain |
| Application | P,H |
| Weight | 0.1755 |
| Corner Radius (Fraction) | 1/125 |
| Cut Type | Center Cutting |
| Overall Length (Decimal Inch) | 3 |
| Overall Length (mm) | 7.62 cm |
| Length Below Shank (Metric) | 25.4 |
| Size | 3/8 x 3/8 x 1/2(1LBS) x 3, R.008 |
| Diameter (Inch) | 0.3750 |
| Shank Diameter (mm) | 9.53 mm |
