YG-1
G8A28060

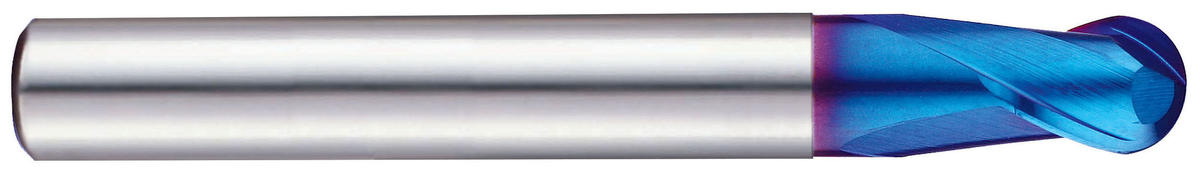

6.0 x 6 x 7(15) x 60 2FL SHORT BALL NOSE X-5070 END MILL
Specifications
| Coating/Finish | Blue |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 6 |
| Overall Length (Inch) | 2-25/69 |
| Length Of Cut (Inch) | 8/29 |
| Overall Length (Metric) | 60 |
| Cutting Direction | Right |
| Shank Size (Metric) | 6 |
| Type | Carbide, 2 Flute Ball Nose |
| Material | Carbide |
| Length Of Cut (Metric) | 7 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 13/55 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.23 |
| Neck Diameter (Metric) | 5.85 |
| Short Description | 2FL SHORT BALL NOSE X-5070 END MILL |
| Shank Diameter (Fractional) | 13/55 |
| Shank Diameter (Decimal) | 0.24 |
| Application | P,H |
| Length of Cut | 7 mm |
| Series | G8A28 |
| Diameter | 6 mm |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.12 |
| Ball Nose Radius (Metric) | 3 |
| Ball Nose Radius (Fractional) | 2/17 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.59 |
| Length Below Shank (Metric) | 15 |
| Length Below Shank (Fractional) | 13/22 |
| Neck Diameter (Fractional) | 3/13 |
| Base Item Number | 2FL SHORT BALL NOSE X-5070 END MILL |
| Neck Diameter (Inch) | 0.23 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0595 |
| Shank Diameter (Inch) | 0.2362 |
| Neck Diameter | 0.2303 |
| Size | 6.0 x 6 x 7(15) x 60 |
| Shank Style | Plain |
