YG-1
G8A38012

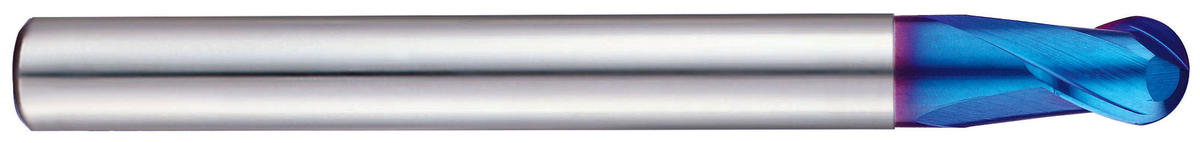

1.2x4 x1.2x50 2FL SE STUB CUT BALL EXTENDED NECK X-5070 POWER CARBIDE END MILL
Specifications
| Coating/Finish | Blue |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1.2 |
| Overall Length (Inch) | 1-31/32 |
| Length Of Cut (Inch) | 1/21 |
| Overall Length (Metric) | 50 |
| Cutting Direction | Right |
| Shank Size (Metric) | 4 |
| Type | Carbide, 2 Flute Stub Length Ball Nose with Extended Neck |
| Material | Carbide |
| Length Of Cut (Metric) | 1.2 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/21 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.05 |
| Neck Diameter (Metric) | 1.15 |
| Short Description | 2FL SE STUB CUT BALL EXTENDED NECK X-5070 POWER CARBIDE END MILL |
| Shank Diameter (Fractional) | 3/19 |
| Shank Diameter (Decimal) | 0.16 |
| Application | P,H |
| Length of Cut | 1.20 mm |
| Series | G8A38 |
| Diameter | 1.20 mm |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.02 |
| Ball Nose Radius (Metric) | 0.6 |
| Ball Nose Radius (Fractional) | 2/85 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.1 |
| Length Below Shank (Metric) | 2.6 |
| Length Below Shank (Fractional) | 4/39 |
| Neck Diameter (Fractional) | 1/22 |
| Base Item Number | 2FL SE STUB CUT BALL EXTENDED NECK X-5070 POWER CA |
| Neck Diameter (Inch) | 0.05 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0295 |
| Shank Diameter (Inch) | 0.1575 |
| Neck Diameter | 0.0453 |
| Size | 1.2x4 x1.2x50 |
| Shank Style | Plain |
