YG-1
G8A43024

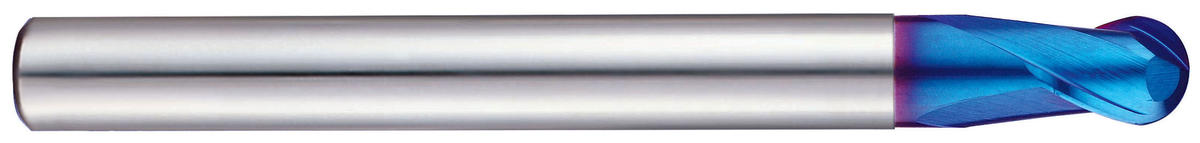

3/8x3/8x3/8x4 2FL SE STUB CUT BALL EXTENDED NECK X-5070 POWER CARBIDE END MILL
Specifications
| Coating/Finish | Blue |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 9.53 |
| Overall Length (Inch) | 4 |
| Length Of Cut (Inch) | 3/8 |
| Overall Length (Metric) | 101.6 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Stub Cut Length Ball Nose with Extended Neck |
| Shank Size (Inch) | 3/8 |
| Material | Carbide |
| Length Of Cut (Metric) | 9.53 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 3/8 |
| Unit Of Measure | Fractional |
| Neck Diameter (Decimal) | 0.37 |
| Neck Diameter (Metric) | 9.42 |
| Short Description | 2FL SE STUB CUT BALL EXTENDED NECK X-5070 POWER CARBIDE END MILL |
| Shank Diameter (Decimal) | 0.38 |
| Shank Diameter (Metric) | 9.53 |
| Application | P,H |
| Length of Cut | 3/8 Inch |
| Series | G8A43 |
| Diameter | 3/8 Inch |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.19 |
| Ball Nose Radius (Metric) | 4.76 |
| Ball Nose Radius (Fractional) | 3/16 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.75 |
| Length Below Shank (Metric) | 19.1 |
| Length Below Shank (Fractional) | 3/4 |
| Neck Diameter (Fractional) | 23/62 |
| Base Item Number | 2FL SE STUB CUT BALL EXTENDED NECK X-5070 POWER CA |
| Neck Diameter (Inch) | 0.37 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.2365 |
| Shank Diameter (Inch) | 0.3750 |
| Neck Diameter | 0.3710 |
| Size | 3/8x3/8x3/8x4 |
| Shank Style | Plain |
