YG-1
G8A46986

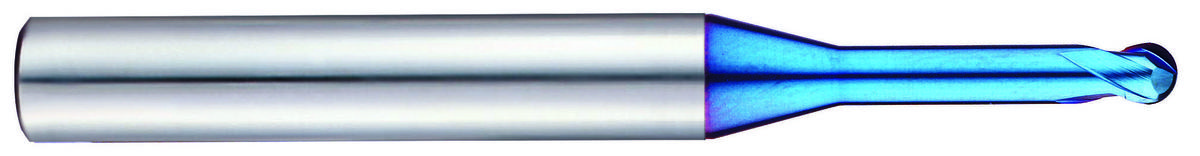

.3 x 4 x .3 x 3 x 45 R.15 2FL BALL NOSE FOR RIB PROCESSING X-5070 END MILL
Specifications
| Coating/Finish | Blue |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 0.3 |
| Overall Length (Inch) | 1-71/92 |
| Length Of Cut (Inch) | 1/85 |
| Overall Length (Metric) | 45 |
| Cutting Direction | Right |
| Shank Size (Metric) | 4 |
| Type | Carbide, 2 Flute Ball Nose for Rib Processing |
| Material | Carbide |
| Length Of Cut (Metric) | 0.3 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/85 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.01 |
| Neck Diameter (Metric) | 0.27 |
| Short Description | 2FL BALL NOSE FOR RIB PROCESSING X-5070 END MILL |
| Shank Diameter (Fractional) | 3/19 |
| Shank Diameter (Decimal) | 0.16 |
| Application | P,H |
| Length of Cut | 0.30 mm |
| Series | G8A46 |
| Diameter | 0.30 mm |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.01 |
| Ball Nose Radius (Metric) | 0.15 |
| Ball Nose Radius (Fractional) | 3/508 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.12 |
| Length Below Shank (Metric) | 3 |
| Length Below Shank (Fractional) | 2/17 |
| Neck Diameter (Fractional) | 1/94 |
| Base Item Number | 2FL BALL NOSE FOR RIB PROCESSING X-5070 END MILL |
| Neck Diameter (Inch) | 0.01 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0265 |
| Shank Diameter (Inch) | 0.1575 |
| Neck Diameter | 0.0106 |
| Size | .3 x 4 x .3 x 3 x 45 R.15 |
| Shank Style | Plain |
