YG-1
G8A53005

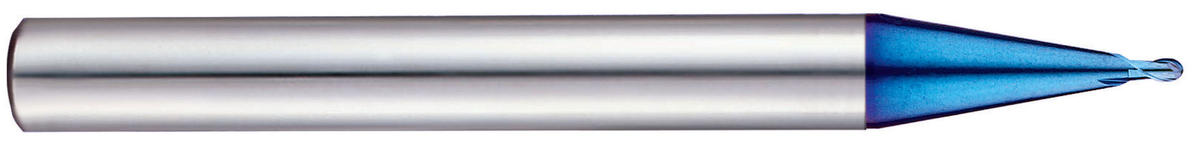

.5 x 6 x .5 x 50 R.25 2FL MINIATURE BALL NOSE X-5070 END MILL
Specifications
| Coating/Finish | Blue |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 0.5 |
| Overall Length (Inch) | 1-31/32 |
| Length Of Cut (Inch) | 1/51 |
| Overall Length (Metric) | 50 |
| Cutting Direction | Right |
| Shank Size (Metric) | 6 |
| Type | Carbide, 2 Flute Miniature Ball Nose |
| Material | Carbide |
| Length Of Cut (Metric) | 0.5 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/51 |
| Unit Of Measure | Metric |
| Short Description | 2FL MINIATURE BALL NOSE X-5070 END MILL |
| Shank Diameter (Fractional) | 13/55 |
| Shank Diameter (Decimal) | 0.24 |
| Application | P,H |
| Length of Cut | 0.50 mm |
| Series | G8A53 |
| Diameter | 0.50 mm |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.01 |
| Ball Nose Radius (Metric) | 0.25 |
| Ball Nose Radius (Fractional) | 5/508 |
| Cut Type | Center Cut |
| Base Item Number | 2FL MINIATURE BALL NOSE X-5070 END MILL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0490 |
| Shank Diameter (Inch) | 0.2362 |
| Size | .5 x 6 x .5 x 50 R.25 |
| Shank Style | Plain |
