YG-1
G8A54907

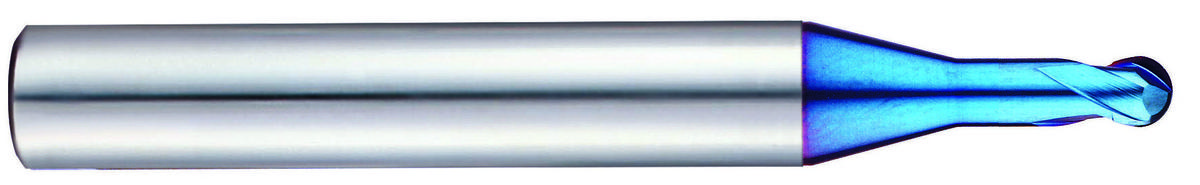

1.5 x 6 x 1.5 x 9.7 x 50 R.75 2FL BALL NOSE FOR RIB PROCESSING X-5070 END MILL
Specifications
| Coating/Finish | Blue |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1.5 |
| Overall Length (Inch) | 1-31/32 |
| Length Of Cut (Inch) | 1/17 |
| Overall Length (Metric) | 50 |
| Cutting Direction | Right |
| Shank Size (Metric) | 6 |
| Type | Carbide, 2 Flute Ball Nose for Rib Processing |
| Material | Carbide |
| Length Of Cut (Metric) | 1.5 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/17 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.06 |
| Neck Diameter (Metric) | 1.45 |
| Short Description | 2FL BALL NOSE FOR RIB PROCESSING X-5070 END MILL |
| Shank Diameter (Fractional) | 13/55 |
| Shank Diameter (Decimal) | 0.24 |
| Application | P,H |
| Length of Cut | 1.50 mm |
| Series | G8A54 |
| Diameter | 1.50 mm |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.03 |
| Ball Nose Radius (Metric) | 0.75 |
| Ball Nose Radius (Fractional) | 1/34 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.38 |
| Length Below Shank (Metric) | 9.7 |
| Length Below Shank (Fractional) | 21/55 |
| Neck Diameter (Fractional) | 2/35 |
| Base Item Number | 2FL BALL NOSE FOR RIB PROCESSING X-5070 END MILL |
| Neck Diameter (Inch) | 0.06 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0435 |
| Shank Diameter (Inch) | 0.2362 |
| Neck Diameter | 0.0571 |
| Size | 1.5 x 6 x 1.5 x 9.7 x 50 R.75 |
| Shank Style | Plain |
