YG-1
G8A59160

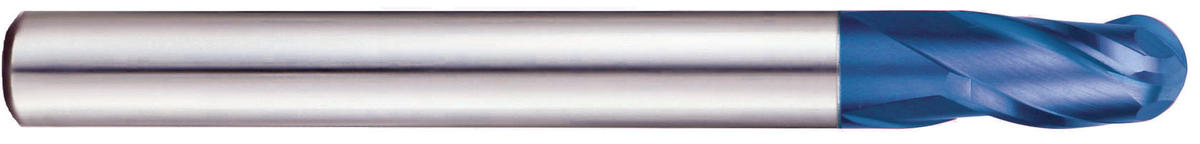

16 x 16 x 30 x 140 R8.0 3FL BALL X-5070 END MILL
Specifications
| Coating/Finish | Blue |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 16 |
| Overall Length (Inch) | 5-22/43 |
| Length Of Cut (Inch) | 1-2/11 |
| Overall Length (Metric) | 140 |
| Cutting Direction | Right |
| Shank Size (Metric) | 16 |
| Type | Carbide, 3 Flute Ball Nose |
| Material | Carbide |
| Length Of Cut (Metric) | 30 |
| Number Of Flutes | 3 |
| Diameter (Inch) | 17/27 |
| Unit Of Measure | Metric |
| Short Description | 3FL BALL X-5070 END MILL |
| Shank Diameter (Fractional) | 17/27 |
| Shank Diameter (Decimal) | 0.63 |
| Application | P,H |
| Length of Cut | 30 mm |
| Series | G8A59 |
| Diameter | 16 mm |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.32 |
| Ball Nose Radius (Metric) | 8 |
| Ball Nose Radius (Fractional) | 23/73 |
| Cut Type | Center Cut |
| Base Item Number | 3FL BALL X-5070 END MILL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.8520 |
| Shank Diameter (Inch) | 0.6299 |
| Size | 16 x 16 x 30 x 140 R8.0 |
| Shank Style | Plain |
