YG-1
GMF15921

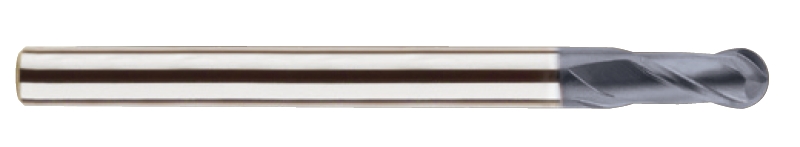

1/8 x 1/4 x 1/4 x 4 4G MILL 2FL H-30 BALL END MILL
Specifications
| Coating/Finish | ALCrN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 3.18 |
| Overall Length (Inch) | 4 |
| Length Of Cut (Inch) | 1/4 |
| Overall Length (Metric) | 101.6 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Ball Nose |
| Shank Size (Inch) | 1/4 |
| Material | Carbide |
| Length Of Cut (Metric) | 6.35 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/8 |
| Unit Of Measure | Fractional |
| Short Description | 4G MILL 2FL H-30 BALL END MILL |
| Shank Diameter (Decimal) | 0.25 |
| Shank Diameter (Metric) | 6.35 |
| Application | P |
| Length of Cut | 1/4 Inch |
| Series | GMF15 |
| Diameter | 1/8 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.06 |
| Ball Nose Radius (Metric) | 1.59 |
| Ball Nose Radius (Fractional) | 1/16 |
| Cut Type | Center Cut |
| Base Item Number | 4G MILL 2FL H-30 BALL END MILL |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.1060 |
| Shank Diameter (Inch) | 0.2500 |
| Size | 1/8 x 1/4 x 1/4 x 4 |
| Shank Style | Plain |
