YG-1
GMF16924

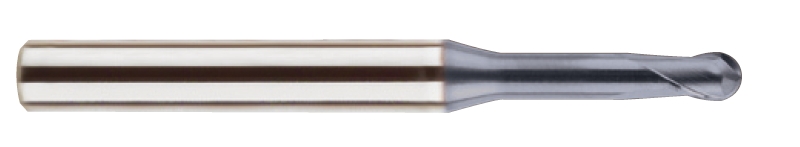

024 x 3/16 x 1/32 x 3/8 x 1-3/4 4G 2FL H-30 NECK BALL END MILL
Specifications
| Coating/Finish | ALCrN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 0.61 |
| Overall Length (Inch) | 1-3/4 |
| Length Of Cut (Inch) | 1/32 |
| Overall Length (Metric) | 44.45 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Ball Nose with Neck |
| Shank Size (Inch) | 3/16 |
| Material | Carbide |
| Length Of Cut (Metric) | 0.79 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 2/83 |
| Unit Of Measure | Fractional |
| Short Description | 4G 2FL H-30 NECK BALL END MILL |
| Shank Diameter (Decimal) | 0.19 |
| Shank Diameter (Metric) | 4.76 |
| Application | P |
| Length of Cut | 1/32 Inch |
| Series | GMF16 |
| Diameter | 2/83 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.01 |
| Ball Nose Radius (Metric) | 0.3 |
| Ball Nose Radius (Fractional) | 1/83 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.38 |
| Length Below Shank (Metric) | 9.5 |
| Length Below Shank (Fractional) | 3/8 |
| Base Item Number | 4G 2FL H-30 NECK BALL END MILL |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0240 |
| Shank Diameter (Inch) | 0.1875 |
| Size | 024 x 3/16 x 1/32 x 3/8 x 1-3/4 |
| Shank Style | Plain |
