YG-1
GMF63120

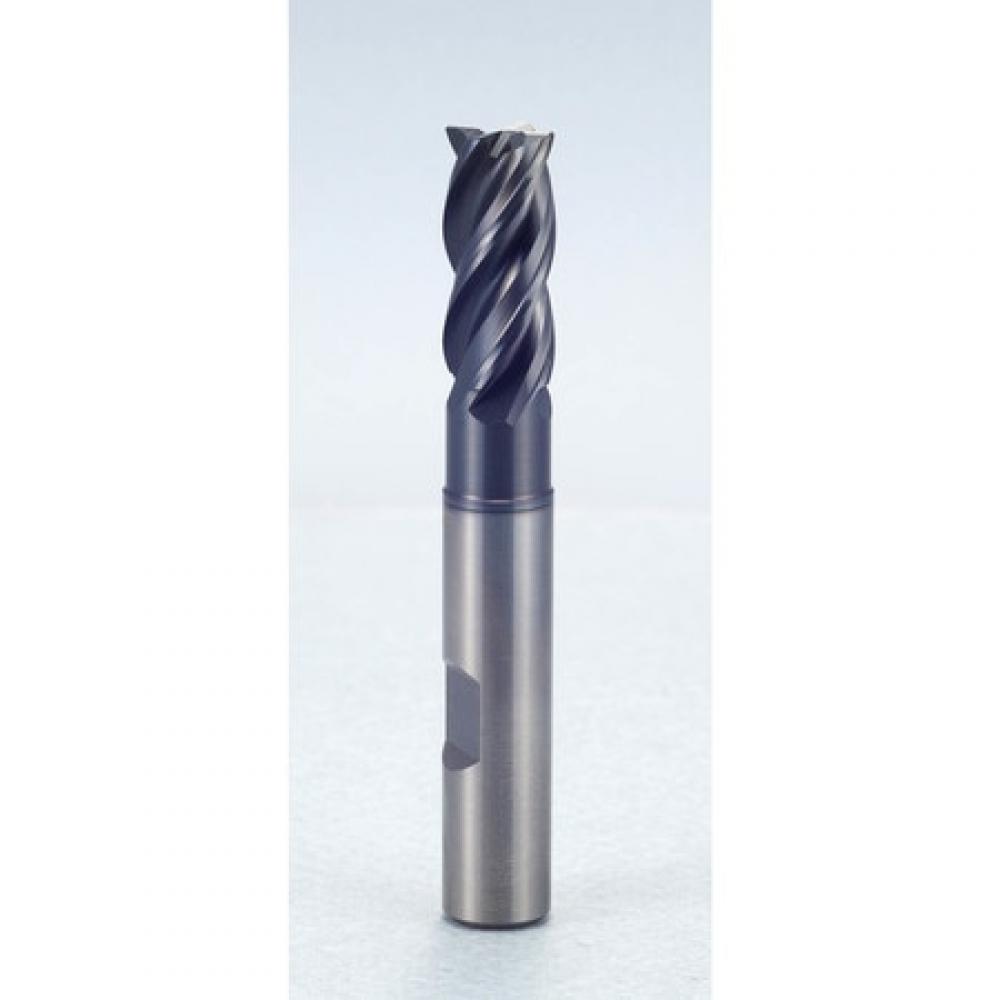

12 (R.5) x 12 x 16(30) x 83 V7 PLUS 4FL MULTI HELIX REG CORNER RADIUS FLAT END MILL
Specifications
| Length Of Cut (Inch) | 0.6299 |
|---|---|
| Helix Angle | 36 |
| Material | Carbide |
| Type | 4 Flute Extended Length |
| Length Of Cut (Metric) | 16.0 |
| Coating/Finish | Y-Coating |
| Corner Radius (Metric) | 0.5 |
| Number Of Flutes | 4 |
| Cutting Direction | Right |
| Short Description | V7 PLUS 4FL MULTI HELIX REG CORNER RADIUS FLAT END MILL |
| Diameter (Decimal) | 0.4724 |
| Shank Type | Flat |
| Series | GMF63 |
| Diameter (Metric) | 12.0 |
| Shank Style | Flat |
| Application | P, M, K, S |
| Weight | 0.2800 |
| Cut Type | Center |
| Overall Length (Decimal Inch) | 3.2677 |
| Overall Length (mm) | 8.3 cm |
| Length Below Shank (Metric) | 30.0 |
| Size | 12 (R.5) x 12 x 16(30) x 83 |
| Diameter (Inch) | 43/91 |
| Shank Diameter (mm) | 1.20 cm |
| Corner Radius (Decimal) | 0.0197 |
