YG-1
S1020

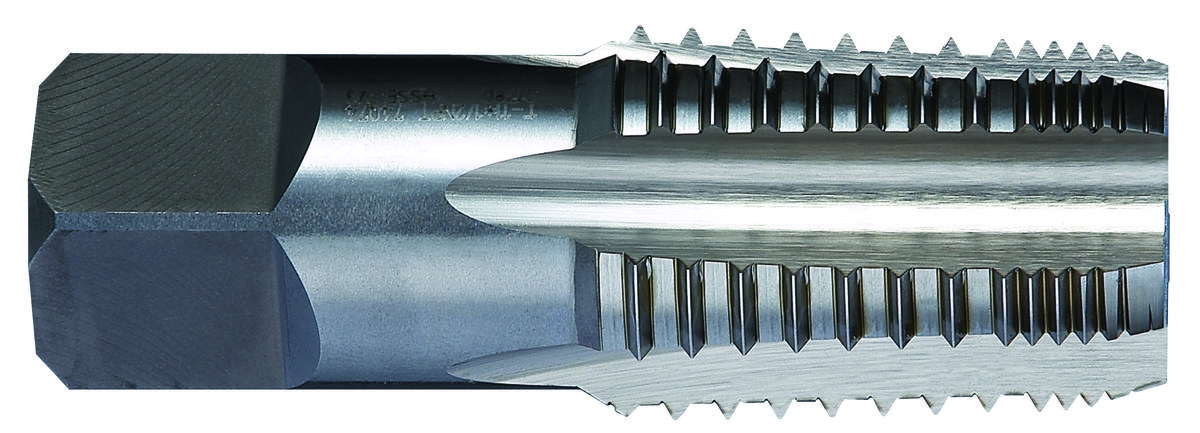

1/16 - 27 5FL STRAIGHT FLUTE NPT/NPTF INTERRUPTED THREAD PIPE TAP BRIGHT
Specifications
| Overall Length (Inch) | 2.130 |
|---|---|
| Overall Length (Metric) | 54.1 |
| Coating/Finish | Bright |
| Shank Type | Square |
| Finish | Bright |
| Overall Length | 2.0 xD |
| Short Description | 5FL STRAIGHT FLUTE NPT/NPTF INTERRUPTED THREAD PIPE TAP BRIGHT |
| Square Length (Metric) | 9.65 |
| Weight | 0.039 |
| Tap Type | Pipe |
| Chamfer Type | Modified Bottoming |
| Shank Diameter (Metric) | 7.94 |
| Thread Length (mm) | 17.5 |
| Overall Length (Decimal Inch) | 2.13 |
| Overall Length (mm) | 5.41 cm |
| Drill Size (Metric) | 6.15 |
| Shank Diameter (Inch) | 0.3125 |
| Trade Name | YG Pipe Taps |
| Diameter (Metric) | 1.59 |
| Square Size (Metric) | 5.94 |
| Blank Standard | 311 |
| Helix Angle | 0 |
| Size | 1/16 |
| Connection (Metric) | 7.94 x 5.94 |
| Diameter (Inch) | 0.0625 |
| Chamfer Length | 2P-3P |
| Shank Diameter (mm) | 7.94 mm |
| Thread Length (Metric) | 17.5 |
| Square Size (Decimal Inch) | 0.234 |
