YG-1
T6505480

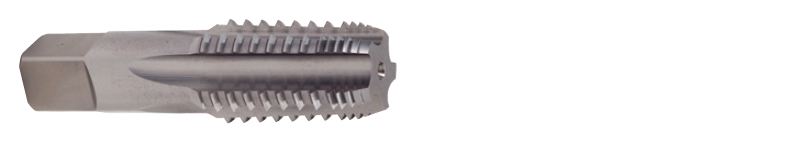

NPT 3/8-18 65.1L 5FL HSS NPT STEAM OXIDE TAPER PIPE INTERRUPTED THREAD TAP FOR GENERAL PURPOSE
Specifications
| Overall Length (Inch) | 2.560 |
|---|---|
| Overall Length (Metric) | 65.0 |
| Coating/Finish | Steam Oxide |
| Shank Type | Square |
| Finish | Steam Oxide |
| Overall Length | 2.0 xD |
| Short Description | 5FL HSS NPT STEAM OXIDE TAPER PIPE INTERRUPTED THREAD TAP FOR GENERAL PURPOSE |
| Weight | 0.194 |
| Tap Type | Pipe |
| Chamfer Type | Modified Bottoming |
| Shank Diameter (Metric) | 17.78 |
| Thread Length (mm) | 26.9 |
| Overall Length (Decimal Inch) | 2.56 |
| Overall Length (mm) | 6.5 cm |
| Drill Size (Metric) | 14.29 |
| Trade Name | YG Pipe Taps |
| Diameter (Metric) | 9.53 |
| Square Size (Metric) | 13.49 |
| Blank Standard | 311 |
| Helix Angle | 0 |
| Size | 3/8 |
| Connection (Metric) | 17.78 x 13.49 |
| Diameter (Inch) | 0.3750 |
| Chamfer Length | 2P-3P |
| Shank Diameter (mm) | 1.78 cm |
| Thread Length (Metric) | 26.9 |
| Square Size (Decimal Inch) | 0.531 |
