YG-1
TG560

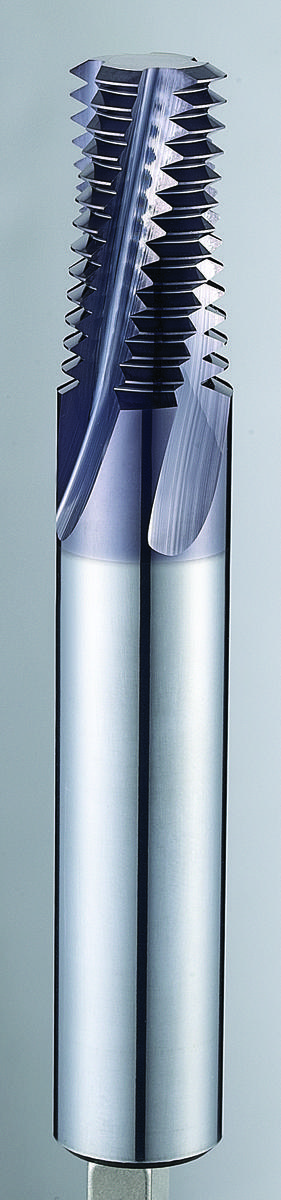

1/2 & 3/4-14 THREAD MILLS CARBIDE NPTF TIALN COATED
Specifications
| Material | Carbide |
|---|---|
| Overall Length (Inch) | 3.5 |
| Shank Diameter (Inch) | 0.5 |
| Short Description | THREAD MILLS CARBIDE NPTF TIALN COATED |
| Weight | 0.313 |
| Overall Length (mm) | 8.89 cm |
| Cutting Direction | Right |
| Diameter (Metric) | 12.573 |
| Number Of Flutes | 4 |
| Helix Angle | 15° |
| Type | Unified Internal Threads ANSI B1.20.3 (NPTF) |
| Coating | TiAN |
| Size | 1/2 & 3/4 |
| Series | TG |
| Shank Style | Plain |
| Diameter (Inch) | 0.495 |
| Application | P, K, N |
| Shank Diameter (mm) | 1.27 cm |
| Thread Length (Metric) | 22.225 |
