YG-1
UGMH09806

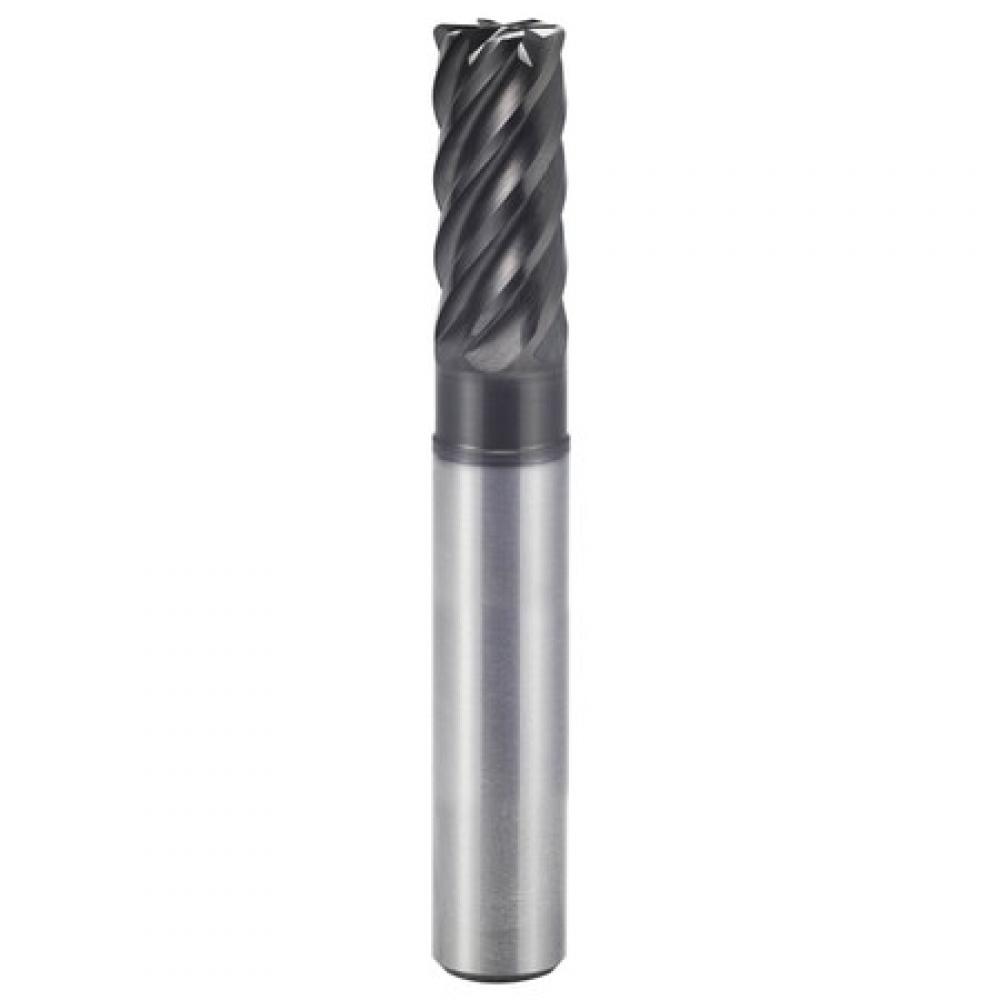

1/2(R.125) x 1/2 x 5/8 x 3 3/8 x 5 V7 PLUS A 6FL MULTI HELIX CR EXTENDED NECK END MILL
Specifications
| Length Of Cut (Inch) | 0.6250 |
|---|---|
| Helix Angle | 45 |
| Material | Carbide |
| Type | 6 Flute Extended Length |
| Length Of Cut (Metric) | 15.9 |
| Coating/Finish | Y-Coating |
| Corner Radius (Metric) | 3.2 |
| Number Of Flutes | 6 |
| Cutting Direction | Right |
| Short Description | V7 PLUS A 6FL MULTI HELIX CR EXTENDED NECK END MILL |
| Diameter (Decimal) | 0.5000 |
| Shank Type | Plain |
| Series | UGMH09 |
| Diameter (Metric) | 12.7 |
| Shank Style | Plain |
| Application | P, M, S |
| Weight | 0.4820 |
| Cut Type | Center |
| Overall Length (Decimal Inch) | 5 |
| Overall Length (mm) | 12.7 cm |
| Length Below Shank (Metric) | 85.7 |
| Size | 1/2(R.125) x 1/2 x 5/8 x 3 3/8 x 5 |
| Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 1.27 cm |
| Corner Radius (Decimal) | 0.1250 |
