YG-1
ZBCB040

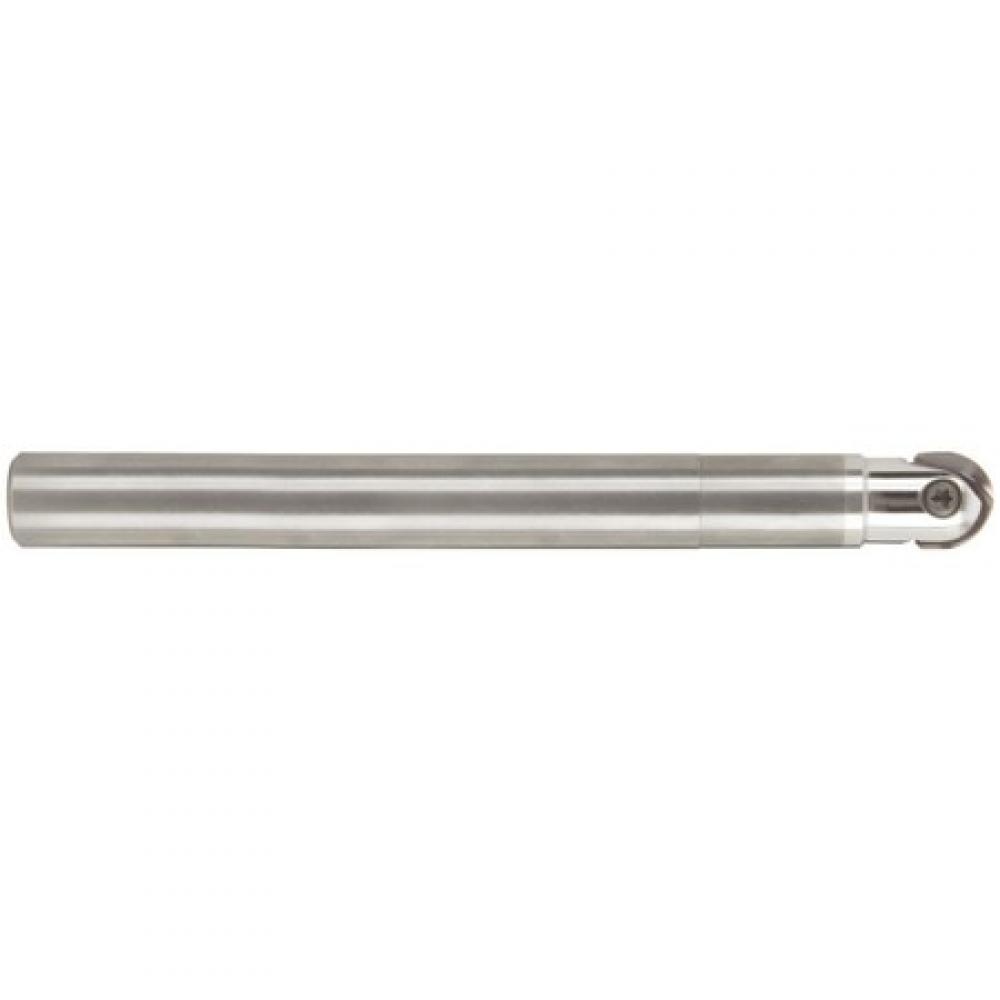

5/8 x 39/64 x 13/16 x 3-3/16 x 7-15/16 I-XMILL LONG CARBIDE HOLDER
Specifications
| Cutting Direction | Right |
|---|---|
| Overall Length (Inch) | 7.9375 |
| Type | i-Xmill Ball Mill Holder |
| Series | ZBC |
| Length Type | Long |
| Short Description | I-XMILL LONG CARBIDE HOLDER |
| Diameter (Metric) | 15.88 |
| Weight | 1.240 |
| Length Of Cut (Inch) | 0.8125 |
| Overall Length (Decimal Inch) | 7.9375 |
| Overall Length (mm) | 20.161 cm |
| Length Below Shank (Metric) | 80.96 |
| Neck Diameter (Metric) | 15.48 |
| Coating | Bright |
| Size | 5/8 x 39/64 x 13/16 x 3-3/16 x 7-15/16 |
| Neck Diameter (Fraction) | 39/64 |
| Length Of Cut (Metric) | 20.64 |
| Diameter (Inch) | 0.6250 |
| Shank Diameter (mm) | 1.59 cm |
| Neck Diameter (Inch) | 0.6094 |
