YG-1
ZBS3001

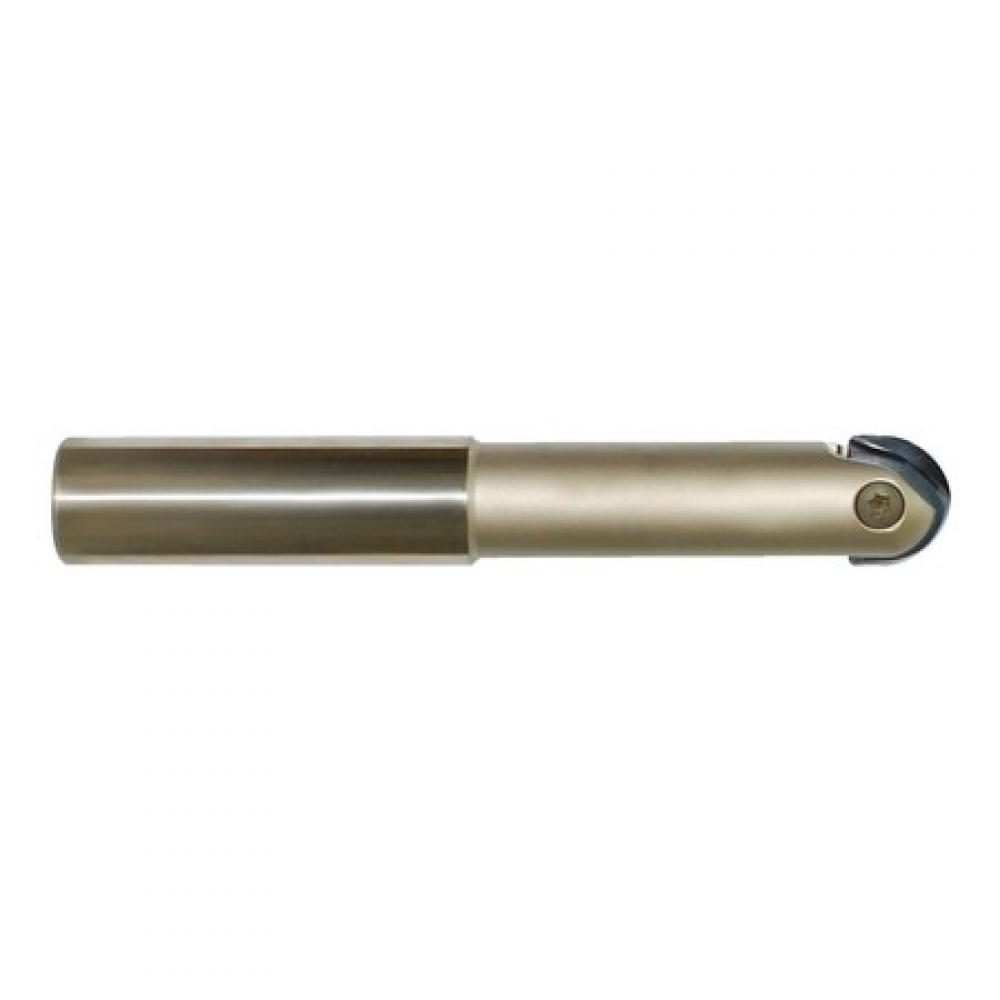

30 x 27 x 55 x 140 I-XMILL SHORT STRAIGHT NECK TYPE METRIC
Specifications
| Cutting Direction | Right |
|---|---|
| Overall Length (Inch) | 5.5118 |
| Type | i-Xmill Ball Mill Holder |
| Series | ZBS |
| Length Type | Short |
| Short Description | I-XMILL SHORT STRAIGHT NECK TYPE METRIC |
| Diameter (Metric) | 30.00 |
| Weight | 1.867 |
| Length Of Cut (Inch) | 2.1654 |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 14 cm |
| Shank Diameter (Inch) | 1.2598 |
| Length Below Shank (Metric) | 55.00 |
| Neck Diameter (Metric) | 27.00 |
| Coating | Nickel-Based |
| Size | 30 x 27 x 55 x 140 |
| Neck Diameter (Fraction) | 1 1/16 |
| Length Of Cut (Metric) | 55.00 |
| Diameter (Inch) | 1.1811 |
| Shank Diameter (mm) | 3.20 cm |
| Neck Diameter (Inch) | 1.0630 |
